BILLET TE06H (42.49MM - 68.01~MM) 6.5MM BORE 6+6 BLADES SB:2.9MM FORWARD 813444-0001 GARRETT TURBINE INLET ADAPTER TO V-BAND TWIN SCROLL
856804-5001S GARRETT GTX3584RS GEN2 A/R.83 (TURBO) (HOSE) (TW:62MM-68MM)(CW:67MM-84MM)
550 - 1000HP
Description
Horsepower: 550 - 1.000HP
Displacement: 2.0 - 5.5 L
856804-5001S

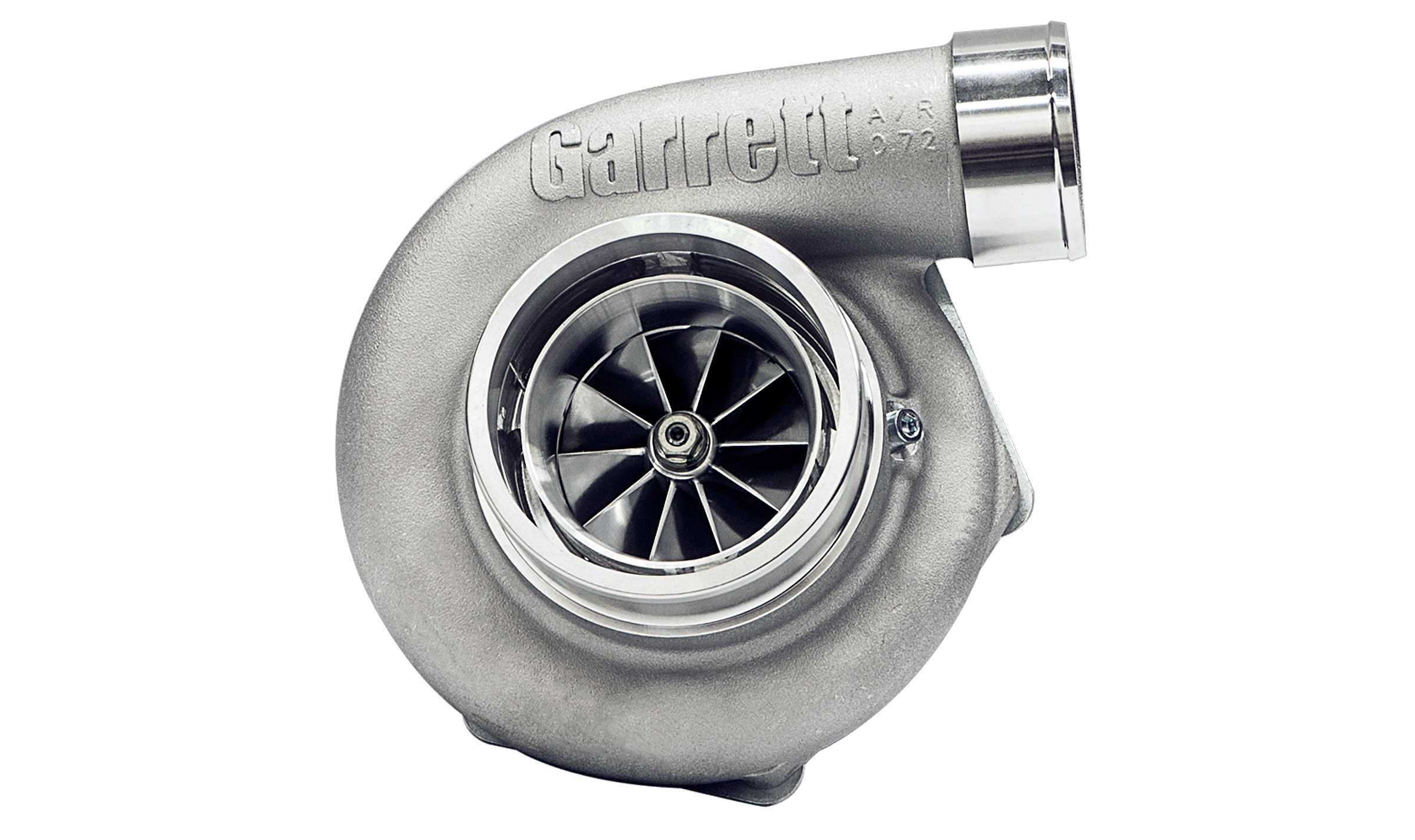

GTX3584RS Gen2 (Adm. Hose/Exh.0.83 V-band)
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Technical Features:
Horsepower: 550 - 1.000HP
Displacement: 2.0 - 5.5 L
- Gen2 Aero compressor wheel for improved performance.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Compact design for tight installations.
- Standar rotation.
- Compressor side: TRIM 64 A/R 0.72
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.50" (63.50mm)
- Turbine side: TRIM 84 A/R 0.83 - Stainless steel
- Turbine Inlet: V-clamp 3.00" (76.20mm)
- Turbine Inlet: V-clamp 3.55" (90.16mm)
- Bearing housing: Oil & water cooled system.
