BILLET TE06H (42.49MM - 68.01~MM) 6.5MM BORE 6+6 BLADES SB:2.9MM FORWARD740902-0069 GARRETT TURBINE HOUSING G25 A/R 0.72
759498-0010 GARRETT ACTUATOR G25_(21.8 PSI)
.jpg)
Description
759498-0010
Actuator Kit G25 (1.5 bar) - V-band/Standar Rotation
Garrett G25 performance actuators kits are available in 0.5 bar, 1,0 bar and 1,5 bar configurations. Kits are available in standar and reverse rotation for the G25-550 and G25-660 V-band turbine configurations and standar rotation only for T4 turbine configuration. Actuators kits provide all parts needed to update the turbocharger.
PRICE:
| 158,00 € |
ex-VAT if taxable
Technical Features:
- For use with G25 turbos with V-band conection on inlet turbine housing
- Actuator part number: 480009-0010

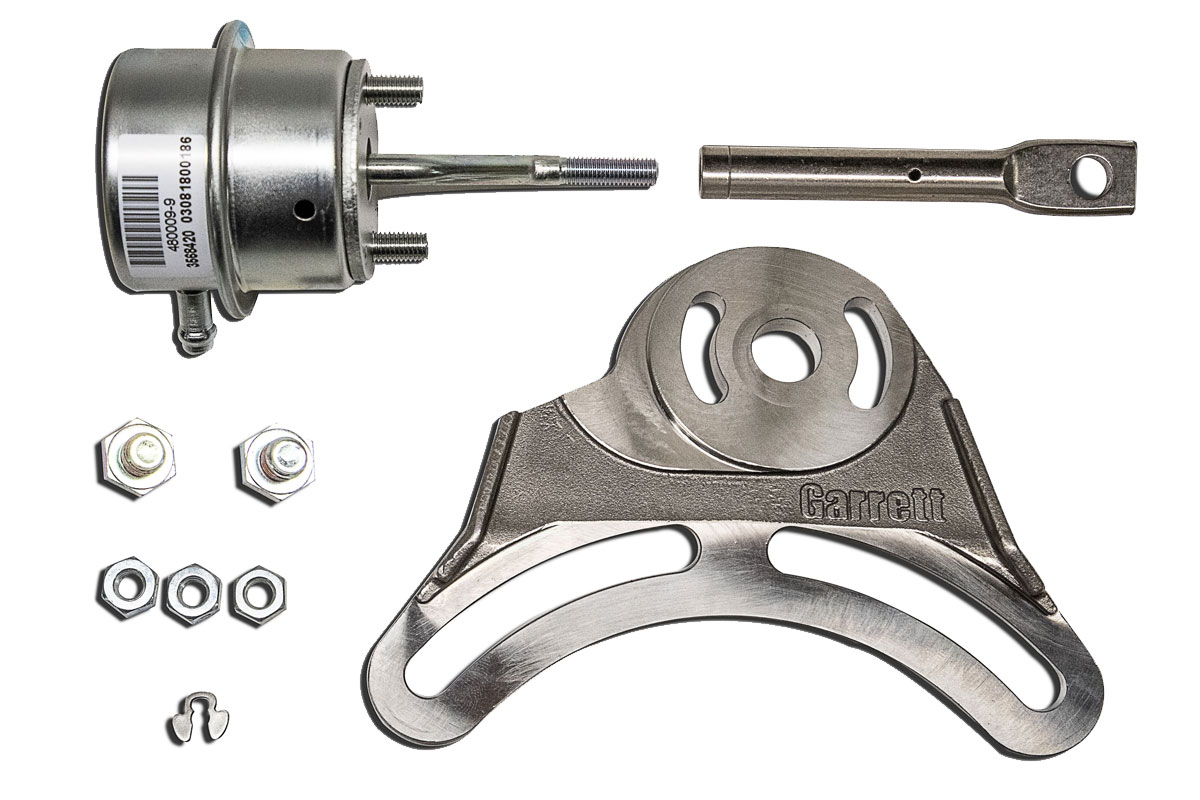

- The kit includes, actuator, rod end, jam nut, lock nuts, retaining ring, bracket bolts and bracket.
- Actuator pressure 1.5 bar ( 12.75 psi )
- Thread 1/4 x 28UNF
- Rod type: straight
- Assembly and calibration required.
Technical Info:
- Weight: 566 g
