858161-5003S GARRETT G25-660 (SUPERCORE) (TW:49MM-54MM)(CW:54MM-67MM)860701-5004S GARRETT G25-660 (CHRA)(TW:49MM-54MM)(CW:54MM-67MM) REDUCED DIAMETER BACKPLATE
860701-5003S GARRETT G25-550 (CHRA) (TW:49MM-54MM)(CW:48MM-60MM) REDUCED DIAMETER BACKPLATE
Description
860701-5003S GARRETT G25-550 (CHRA)
(TW:49MM-54MM)
(CW:48MM-60MM)
REDUCED DIAMETER BACKPLATE

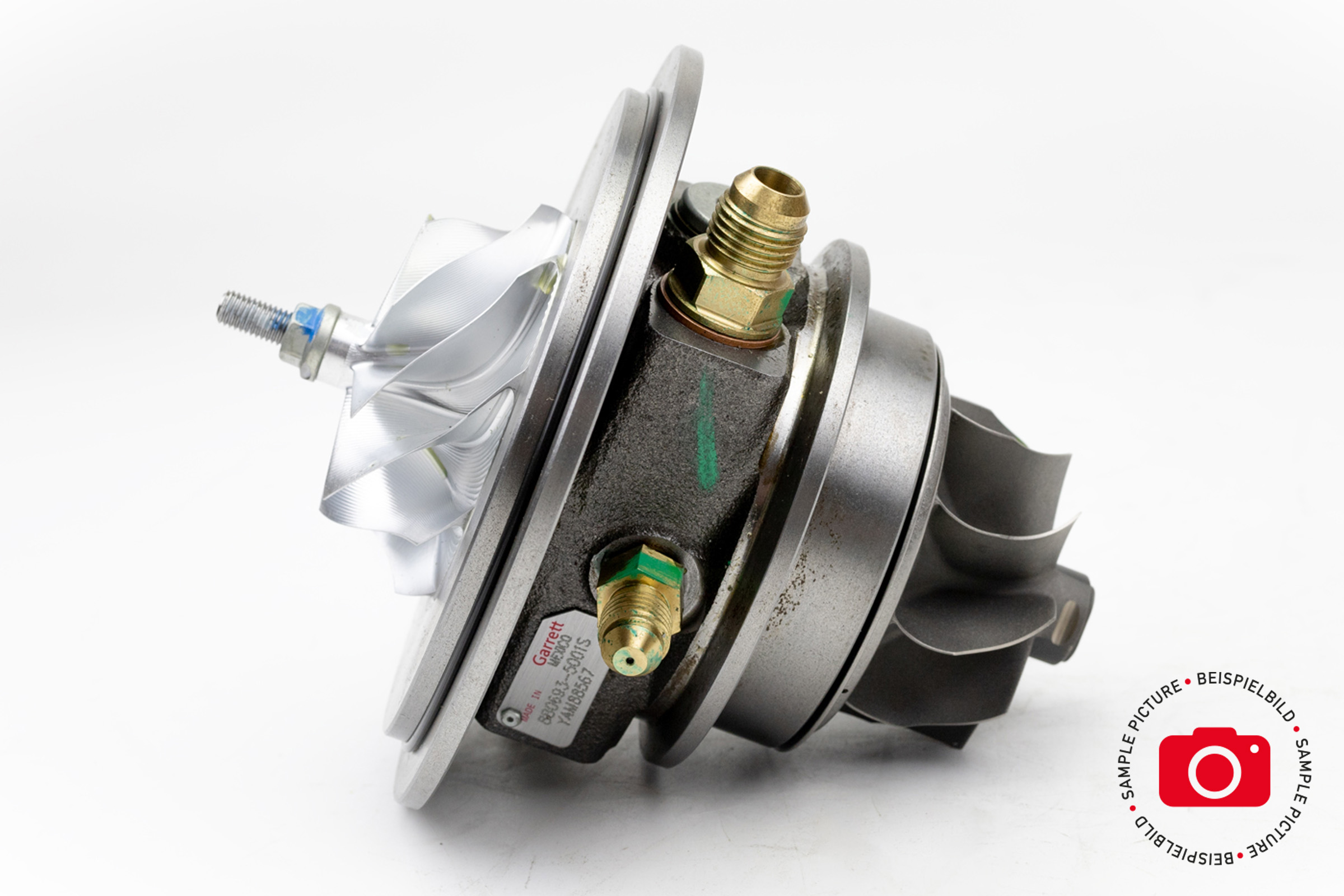

860701-5003S
CHRA G25-550 (Reduced dia. backplate)
G Series with reduced diameter backplates provide modularity for kits designed with previous generation Garrett products making the compressor stage outline interchangeable. To achieve this, the one-piece G Series backplate is machined to accept the adapter ring from GT, GTX GEN I / II turbochargers to connect the compressor housing to the center housing. This configuration allows kits to be easily upgraded to the G Series product line and its improved features.
PRICE:
| 1 035,00 € |
ex-VAT if taxable
Technical Features:
- Reduced diameter backplate
- Compressor side: TRIM 65 (60.0mm-48.0mm)
- Turbine side: TRIM 84 (54.0mm-49.0mm)
- Bearing housing: Oil & water cooled system
Technical Info:
