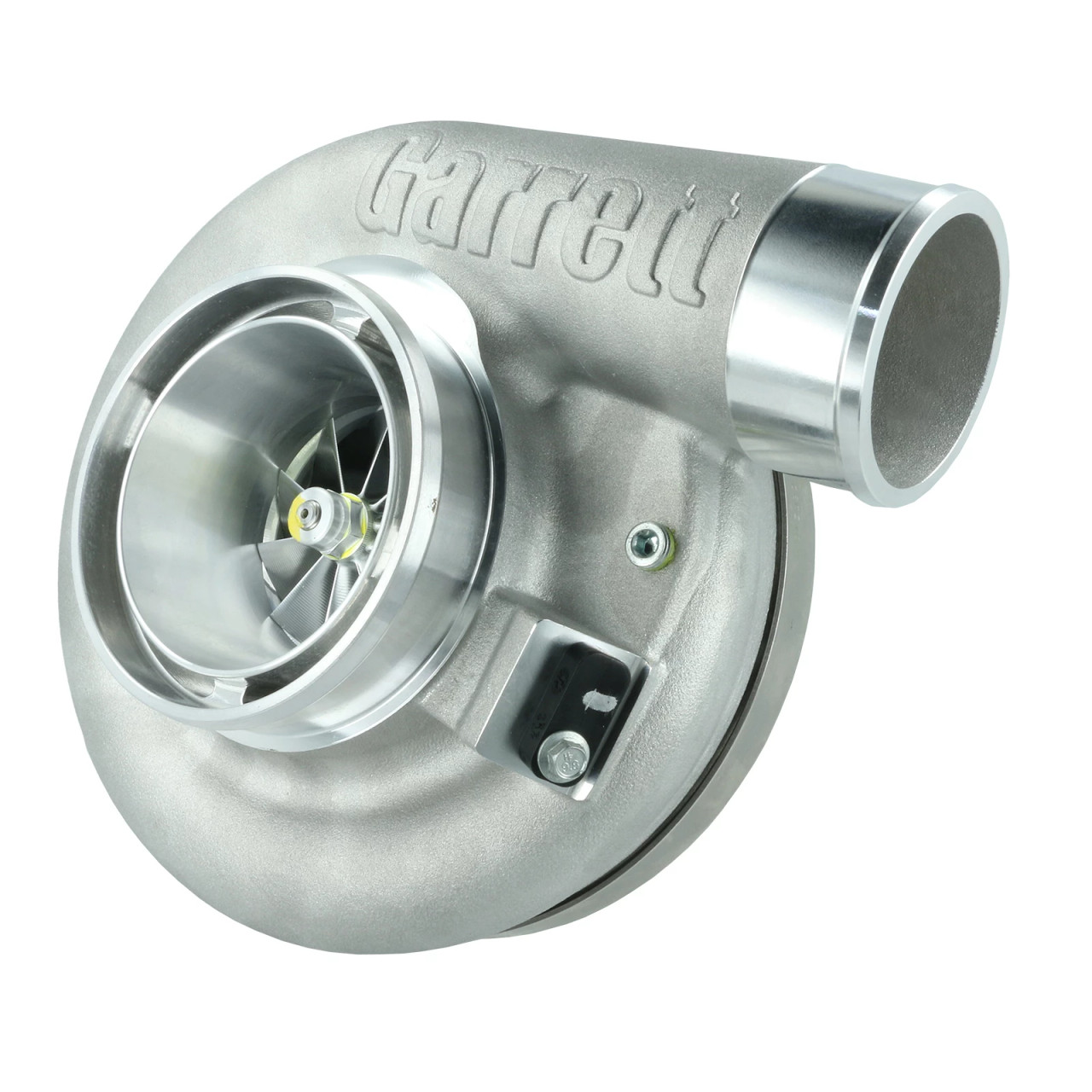

860777-5002S GARRETT G40-1150 SUPERCORE (TW:70MM-77MM)(CW:71MM-88MM)

PrintEmail
Description

860777-5002S GARRETT G40-1150 SUPERCORE (TW:70MM-77MM)(CW:71MM-88MM)

860777-5002S

G40-1150 (Super Core)

The new G-Series line of turbochargers features the latest Gaarrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 900 horsepower. High flowing Mar-M turbine wheel handles up to 1050 degrees C temperatures. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.


Technical Features:
Horsepower: 500 - 1150HP
Displacement: 2.0 - 6.0L
  • G Series compressor aero increases flow up to 35% (compared to GTX4088R)
  • Fully machined Speed Sensor and pressure ports.
  • Dual ceramic ball bearing with steel cages
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Stainless steel turbine housings available with T4 twin scroll inlet
  • Oil restrictor and water fittings included.
  • Standar rotation.
  • Compressor side: TRIM 65 A/R 0.80
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: Hose 2.50" (63.50mm)
  • Bearing housing: Water and Oil cooled system.
Technical Info:
