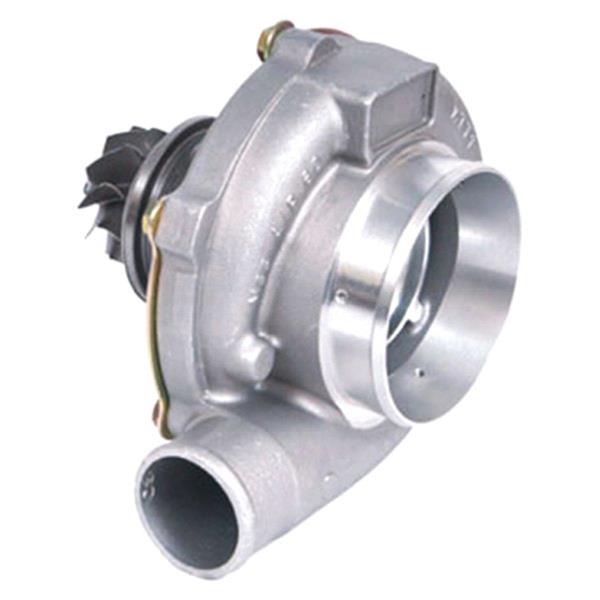

836028-5005S GARRETT GT3071R (SUPER CORE) (TW:55MM-60MM)(CW:53MM-71MM)

PrintEmail
Description

836028-5005S

GARRETT GT3071R (SUPER CORE) (TW:55MM-60MM)(CW:53MM-71MM)





Reference Data

GT3071R Compressor Turbine
HP: 280-480  Disp: 2.5L-3.5L Inducer Exducer A/R Inducer Exducer Trim
Supercore PN
836028-5002S 102.00mm hose / square heat shroud 53mm 71mm 0.50 60mm 55mm 84
836028-5005S 102.00mm hose / stepped heat shroud 53mm 71mm 0.50 60mm 55mm 84
836028-5001S 69.85mm hose / square heat shroud 53mm 71mm 0.50 60mm 55mm 84
Turbine Kits: GTX30 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT, GTX Gen I, and GTX Gen II 30 Series Supercores 740902-0009 0.63 T3 V-Band Free Float N
740902-0008 0.82 T3 V-Band Free Float N
740902-0007 1.06 T3 V-Band Free Float N
740902-0036 0.61 V-Band V-Band Free Float N
740902-0035 0.83 V-Band V-Band Free Float N
740902-0034 1.01 V-Band V-Band Free Float N
  PN A/R Inlet Outlet Wastegate Divided
Wastegated turbine assembly does not include bolts, clamps, or actuator 771300-0006 0.63 T3 5 bolt Wastegated N
771300-0005 0.82 T3 5 bolt Wastegated N
771300-0004 1.06 T3 5 bolt Wastegated N
