841691-5002S 841691-5002S GARRETT GTW3684R (SUPER CORE) (TW:62MM-71MM)(CW:62MM-84MM) AKA GTW6262R841691-5004S GARRETT GTW3884R (SUPER CORE) (TW:65MM-74MM)(CW:64MM-84MM)
841691-5003S GARRETT GTW3884R (SUPER CORE) (TW:65MM-74MM)(CW:62MM-84MM)
Description
Horsepower: 450 - 950HP
Displacement: 2.0 - 6.0L

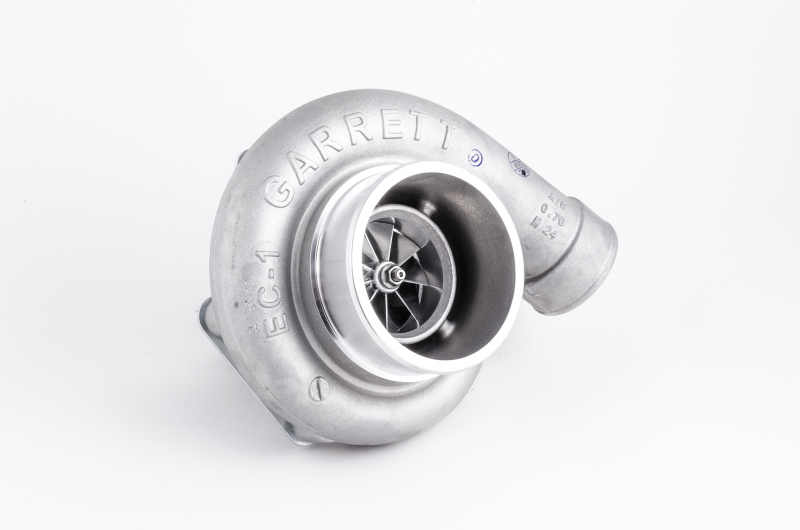

841691-5003S GARRETT GTW3884R (SUPER CORE)
(TW:65MM-74MM)
(CW:62MM-84MM)
841691-5003S
GTW3884R
High performance, low cost alternative to GT turbos
Technical Features:
Horsepower: 450 - 950HP
Displacement: 2.0 - 6.0L
- "W" denotes Wider flow range ( better surge, better choke flow ).
- New 10mm Ceramic Ball Bearing cartridge.
- TO4Z ball bearing center housing.
- TO4S compressor housing A/R 0.70
- Forged aluminum compressor wheels, flank-milled.
- Compressor side TRIM 54 (62.00mm)
- Turbine side TRIM 76
- 10 full blades.
Technical Info:
