846098-5002S GARRETT GTX3584RS GEN2 (SUPER CORE) (V-BAND) (TW:62MM-68MM)(CW:67MM-84MM)

PrintEmail
Description

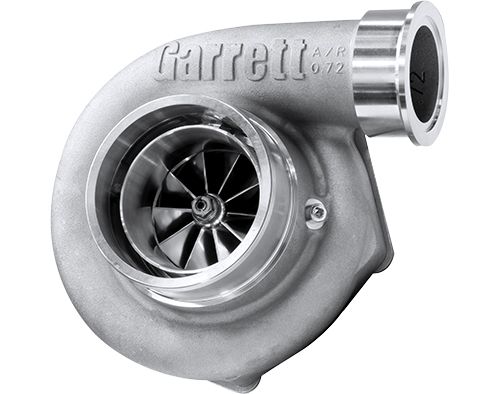

846098-5002S GARRETT GTX3584RS GEN2 (SUPER CORE) (V-BAND) (TW:62MM-68MM)(CW:67MM-84MM)

846098-5002S

Super Core GTX3584RS Gen2 (V-band)

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.


Technical Features:

Horsepower: 550 - 1.000HP
Displacement: 2.0 - 5.5L
  • Gen2 Aero compressor wheel for improved performance.
  • Improved ported shroud design for surge resistance.
  • New compressor housing aesthetics.
  • Integrated speed sensor port.
  • Compact design for tight installations.
  • Standar rotation.
  • Actuator and turbine housing not include.
  • Compressor side: TRIM 64 A/R 0.72
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: V-band 3.00" (76.20mm)
  • Turbine side: TRIM 84
  • Bearing housing: Oil & water cooled system.
