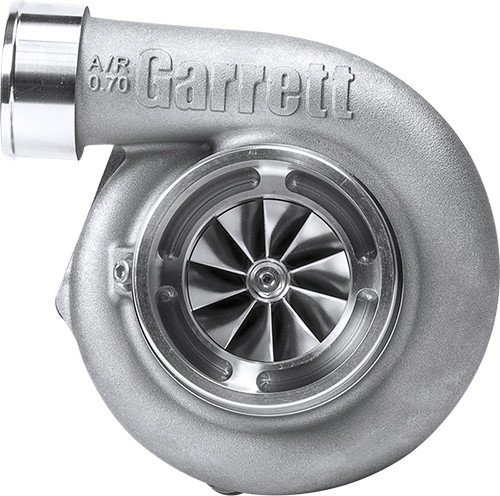

856803-5004S GARRETT GTX3582R GEN2 (TURBOCHARGER) REVERSE (TW:62MM-68MM)(CW:66MM-82MM) (CH AR.70 TH AR.61 VBAND)

PrintEmail
Description

856803-5004S GARRETT GTX3582R GEN2 (TURBOCHARGER) REVERSE

(TW:62MM-68MM)

(CW:66MM-82MM)

(CH AR.70 TH AR.61 VBAND)

856803-5004S

GTX3582R Gen2 (Adm. Hose/Exh.0.61 V-band) - Reverse

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
PRICE:
1 940,00 €
ex-VAT if taxable
Technical Features:

Horsepower: 450 - 850HP
Displacement: 2.0 - 4.5L
  • Gen2 Aero compressor wheel for improved performance.
  • Improved ported shroud design for surge resistance.
  • New compressor housing aesthetics.
  • Integrated speed sensor port.
  • Compact design for tight installations.
  • Reverse rotation.
  • Compressor side: TRIM 64 A/R 0.70
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: Hose 2.50" (63.50mm)
  • Turbine side: TRIM 84 A/R 0.61 - Reverse
  • Turbine Inlet: V-clamp 3.00" (76.20mm)
  • Turbine Outlet: V-clamp 3.55" (90.16mm)
  • Bearing housing: Oil & water cooled system.
